PCN402a型智能運動粘度測定儀

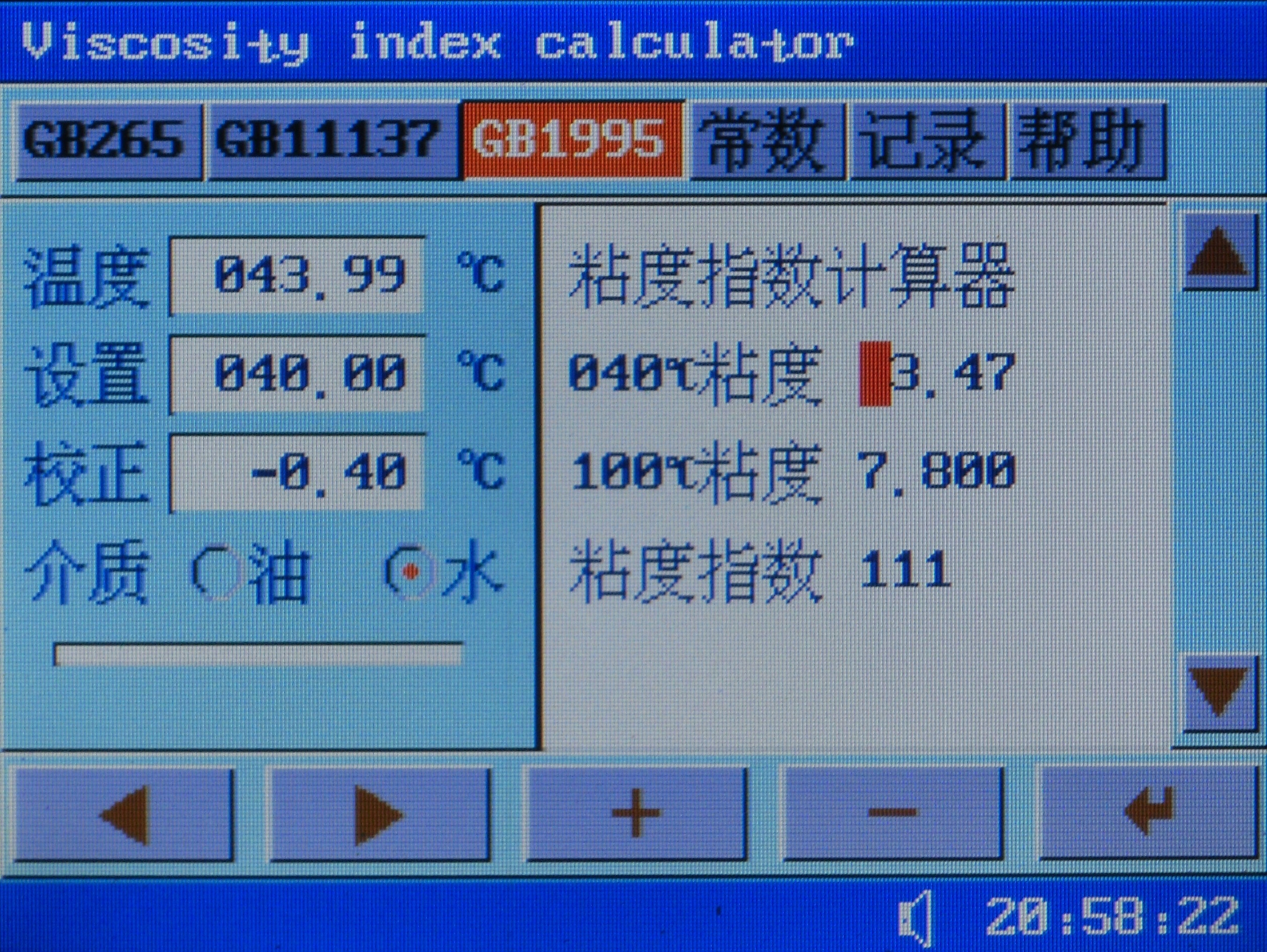

PCN402a型智能運動粘度測定儀，是繼PCN402之后推出的又一款智能儀器，嵌入GUI 圖形文件管理系統和FatFs R0.08文件管理系統，搭配自家的V3.0的界面，中文操作菜單和英文提示菜單。5.7寸 (320x240)的LED背光彩色屏幕、觸摸屏（電容式多點觸控屏），也符合該機高端的定位。硬件方面，PCN402A使用的是雙核CPU處理器，頻率為32MHz，其他支持232接口與計算機聯網，而外形設計，簡約方正，主要針對高端油化驗室.
使用標準：
GB/T265、GB/11137、GB/T1995
儀器特點：
恒溫浴采用雙層雙缸保溫效果好溫度均勻；
恒溫浴采用小缸體、三基色光源容易觀察；
智能控溫、三路自動計時、配有溫度修正；
綜合實驗結果自動計算；
配有智能時鐘顯示；（3管機）
打印機可選；
技術指標：
溫度測量范圍：室溫～150℃
分辨率： 0.01℃
控溫精度： ±0.01℃
加熱功率： 1800W
重復性： 符合GB/T265、GB/11137、GB/T1995標準
使用環境： 環境溫度：10～30℃; 相對濕度：<80%RH
供電電源： AC220V±10%，50±1Hz
頻 率 ： 50Hz±5%
外觀尺寸： 560mm*360mm*500mm
重 量 ： 12kg
PCN402a intelligent Kinematic viscosity testers
Kinematic viscosity meter PCN402a intelligent, is launched after following PCN402, and a smart instruments, embedded GUI graphics file management system and FatFs R0.08 Document Management System V3.0 interface, with its own Chinese operation menu and prompts in English menu. 5.7-inch (320x240) LED-backlit color screen, touch screen (capacitive multi-touch screen), but also in line with the high-end positioning of the aircraft. The use of the hardware side, PCN402A dual-core CPU processor frequency is 32MHz, other support 232 interfaces with the computer network, and exterior design, minimalist Founder, mainly for high-end oil laboratory.
Using the standard:
GB/T265, GB/11137, GB/T1995
Instrument features:
Thermostatic bath double-double cylinder insulation effect, temperature uniformity;
Thermostatic bath with a small cylinder, three-color light source is easy to observe;
Intelligent temperature control, three-way automatic timing, with the temperature correction;
The Comprehensive Experimental results automatically calculated;
With intelligent clock display; (3 machines)
The printer is optional;
Technical indicators:
Temperature measurement range: room temperature ~ 150 ℃
Resolution: 0.01 ℃
Temperature control accuracy: ± 0.01 ℃
Heating Power: 1800W
Repeatability: meet GB/T265, GB/11137, GB/T1995
Environment: ambient temperature: of of 10 ~~ 30 ° C; relative humidity: <80% RH
Power supply: AC220V ± 10%, 50 ± 1Hz
Frequency: 50Hz ± 5%
Dimensions: 560mm * 360mm * 500mm
Weight: 12kg
